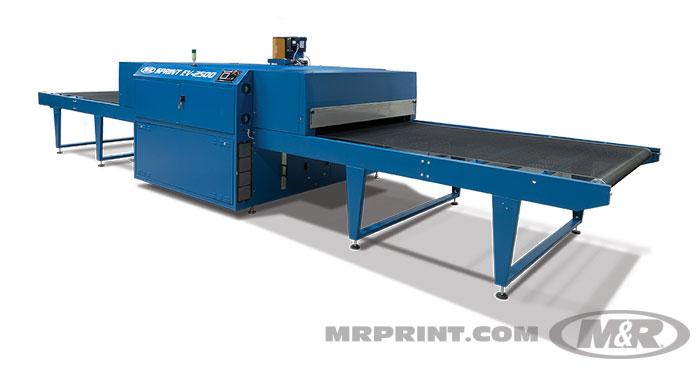

M&R Sprint EV 2500 Gas dryer 38" Belt 4' infeed-10' Heat- 4' Outfeed

Name: M&R Sprint EV 2500 Gas dryer 38" Belt 4' infeed-10' Heat- 4' Outfeed
Brand: M&R Printing Equipment INC.
SKU: M&R-SPRINT-WV-2500-38

M&R-SPRINT-WV-2500-38

Quoted for your shop with power, freight and install. Talk to a tech who has run one.

Request a quote

Or call: 763-391-7390 · 817-861-3464

Ships same day from MN & TX · Free shipping on supply orders $300+

M&R's value-priced Sprint: a modular gas conveyor dryer with the curing consistency Sprint dryers are known for.

Overview

The M&R Sprint EV 2500 is a gas-fired screen printing conveyor dryer. This configuration has a 38" belt, a 10' heat chamber and 48" infeed and outfeed. M&R re-engineered the Sprint line to reach a more competitive price while keeping the core design that has made Sprint dryers an industry standard for over 20 years.

A 3.5" color touchscreen runs the dryer. A fuzzy-logic controller holds the chamber within 1° of target at the thermocouple, and the AccuSet belt controller displays retention time, so cure settings are easy to repeat from job to job. M&R's cool-skin construction keeps the heat inside the chamber, where it belongs.

The burner runs on liquid propane or natural gas. The design is modular: 24" heat expansion modules and 48" conveyor extensions let the dryer grow with the shop, from 8' up to 16' of heat. It is built to keep pace with automatic press production.

Features ▼

Gas-Fired Burner
Liquid propane or natural gas, 300,000 Btu maximum input. Normal usage is significantly lower.
3.5" Color Touchscreen
A simple HMI for setting and monitoring the dryer.
Fuzzy-Logic Temperature Control
Holds chamber heat within 1° of target at the thermocouple.
AccuSet Belt Speed Control
Displays retention time for repeatable cures.
Cool-Skin Technology
Keeps the heat in the dryer and the cabinet cooler on the outside.
Patriot Belt on Aluminum Rollers
M&R's Patriot Belt system for consistent belt travel.
Alarms and Tower Light
Temperature monitor with visible and audible alarms, plus a tower light for status at a glance.
Maintenance Minder
Alerts when routine maintenance is due.
Modular Expandability
24" heat expansion modules and 48" infeed and outfeed extensions.
Warranty & Support
Two-year limited warranty and M&R's 24-hour / 365-day support hotline.

Specifications ▼

Model

M&R Sprint EV 2500 - 38

Belt Width

38" (97 cm)

Heat Chamber Length

10' (305 cm) as listed; 8' to 16' available

Heat Chamber Width

53" (135 cm)

Standard Infeed / Outfeed

48" (122 cm) / 48" (122 cm)

Fuel

Liquid propane (LP) or natural gas (NG)

Burner Input Maximum

300,000 Btu

Gas Input

1" (2.54 cm), 5" w.c. input pressure

Exhaust

12" (30 cm) blower, 1,500 cfm @ 1/4" static pressure

Electrical Configurations

208/230 V, 1 ph, 15/14 A, 2.3 kW; 208/230 V, 3 ph, 10/9 A, 2.3 kW; 380/415 V, 3 ph, 8 A, 2.3 kW; 460/480 V, 3 ph, 5 A, 2.3 kW

Expansion Heat Modules

24" (61 cm)

Overall Length

18.5' (564 cm) and up, depending on heat chamber and conveyor lengths

Shipping Weight

3,300 lb (1,496 kg) with an 8' heat chamber

Warranty

2-year limited warranty

Options

48", 60" and 72" belt widths; 12', 14' and 16' heat chambers; infeed and outfeed extensions in 48" increments

Best For ▼

Automatic Press Shops Gas-Fired Curing Growing Production Value
