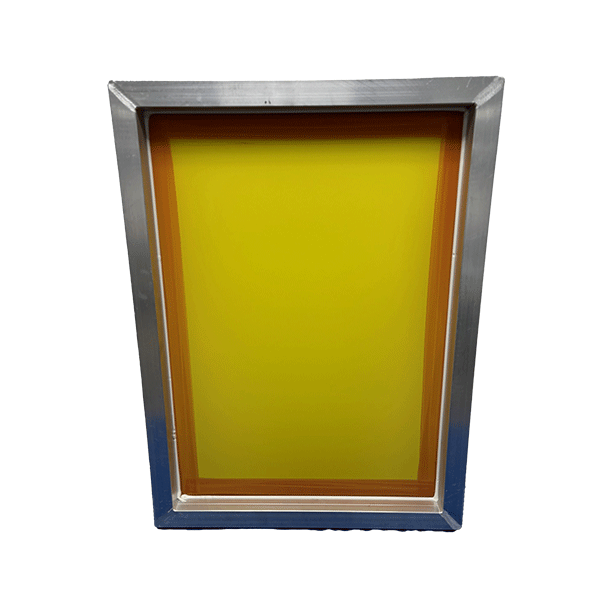

GSF 23" x 31" 230/40 Thin Thread Yellow Mesh Alum Frame
Professional 23" x 31" aluminum screen printing frame with 230/40 thin thread polyester mesh, engineered for increased open area, improved ink flow, sharp detail reproduction, and consistent garment printing performance.
Characteristics
The GSF 23X31 230/40 TT Standard Frame is a professional pre-stretched aluminum screen printing frame designed for garment decorators who require excellent detail reproduction, efficient ink transfer, and dependable mesh tension.
This frame features 230/40 thin thread mesh, combining a 230 mesh count with a fine 40-micron thread diameter. By using a thinner thread while maintaining the 230 mesh count, the screen provides increased open area compared with conventional mesh constructions. The additional open area allows ink to pass through the screen more efficiently while maintaining the fine resolution expected from a high mesh count.
GSF Thin Thread TexScreen mesh is manufactured from low-elongation polyester monofilament and is specifically designed for garment printing applications. Its improved ink flow can allow printers to use less squeegee pressure while maintaining consistent ink transfer and excellent image definition.
The 230/40 configuration is particularly well suited for fine-detail graphics, halftones, small text, simulated process printing, process-color work, and other applications requiring controlled ink deposits and precise stencil definition.
Thin thread construction can also provide advantages when printing water-based inks. The increased open area promotes easier ink flow through the mesh and can help water-based inks remain open longer during production. It is also suitable for plastisol and other compatible textile ink systems.
The screen is professionally stretched onto GSF's durable 23" x 31" aluminum frame constructed from 1.5" x 1.5" aluminum tubing. GSF uses strong aluminum alloys, TIG-welded corner construction, professional tensioning equipment, and low-elongation mesh to produce frames designed for dependable tension and registration throughout repeated production use.
This Standard Frame configuration provides the performance advantages of GSF Thin Thread TexScreen mesh without the Elite Screen Sealant System, making it an excellent general-purpose choice for shops using their normal screen taping and reclaiming procedures.
- Professional pre-stretched screen printing frame
- 23" x 31" outside frame dimensions
- 230 mesh count
- 40-micron thin thread construction
- Thin thread polyester monofilament mesh
- Low-elongation mesh construction
- Increased open area compared with conventional mesh constructions
- Improved ink flow through the screen
- Helps provide efficient ink transfer
- Can allow reduced squeegee pressure
- Excellent fine-detail reproduction
- Supports sharp stencil and image definition
- Controlled ink deposit for detailed printing
- Excellent for fine text and intricate artwork
- Suitable for halftone printing
- Excellent for simulated process applications
- Suitable for process-color printing
- Performs well with water-based inks
- Suitable for plastisol inks
- Increased open area helps water-based inks remain open longer
- Durable aluminum frame construction
- 1.5" x 1.5" aluminum frame profile
- TIG-welded corner construction
- Professionally stretched for consistent tension
- Designed for dependable registration
- Suitable for manual and automatic screen printing
- Built for professional garment-printing production
- Fine-detail garment printing
- Small text
- Detailed line work
- Fine halftones
- Simulated process printing
- Process-color printing
- Detailed multicolor graphics
- Retail apparel graphics
- Water-based printing
- Plastisol printing
- Controlled ink-deposit applications
- High-resolution textile printing
- Manual screen printing
- Automatic screen printing
- Use 230/40 thin thread mesh for artwork requiring fine detail, small text, halftones, and controlled ink deposit.
- Take advantage of the increased open area by using only the squeegee pressure necessary to clear the screen.
- Excessive squeegee pressure can reduce the performance advantages provided by thin thread mesh.
- Properly optimize emulsion coating and exposure settings for the fine 230 mesh count.
- Yellow high-mesh fabrics can help reduce light scatter during exposure and improve stencil edge definition.
- Maintain proper off-contact to encourage clean ink release and preserve image detail.
- When printing water-based inks, keep the screen properly flooded between print cycles to minimize drying in the image area.
- Clean water-based inks promptly after production to prevent ink from drying in the fine mesh openings.
- Use appropriate screen tape around the frame and mesh edges because this is the Standard rather than Elite Screen Sealant configuration.
- Avoid aggressive scrubbing during reclaiming to help protect the fine 40-micron mesh.
- Inspect mesh regularly for abrasion, damaged threads, or loss of tension.
- Store finished screens vertically in a clean, dry screen rack to help prevent accidental mesh damage.
