M&R Quatro 6/8 DTF Printing System
M&R-QUATRO-6/8
Configured to your shop: heads, stations, power and install. Talk to a tech who has run one.
Or call: 763-391-7390 · 817-861-3464
Ships same day from MN & TX · Free shipping on supply orders $300+
Nine-color direct-to-film printing with an extended gamut, from M&R.
Overview

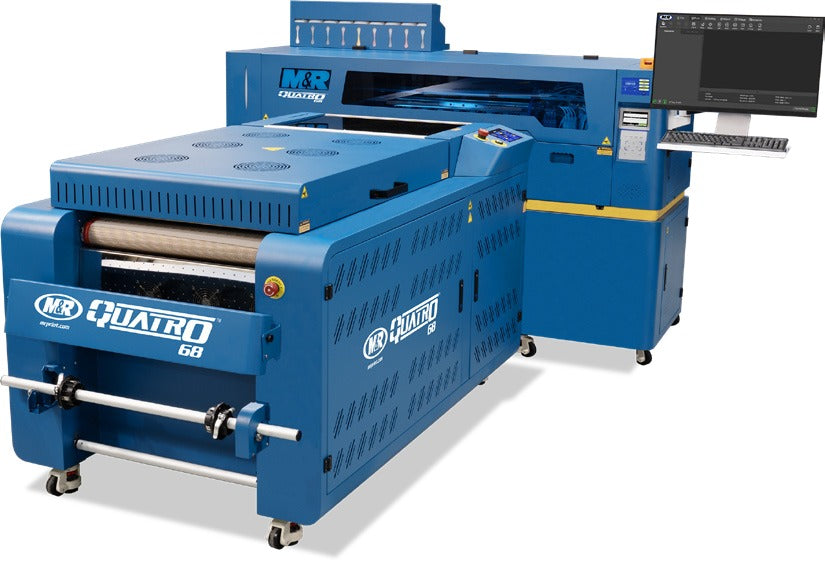

The M&R QUATRO 68 is a 24" Direct to Film (DTF) Transfer Printing System. Six Epson i3200 print heads run CMYK, Orange, Red, Green and Violet plus White, for brighter, more accurate color than a CMYK and White printer.
Designs print onto PET film, the combination adhesive application system powders the wet ink, and the quartz infrared dryer cures the ink and fuses the adhesive in one pass. The finished transfers press onto garments with heat and pressure.
Features
▼
-
Extended Gamut Ink Set
CMYK, Orange, Red, Green, Violet and White pigmented aqueous inks. -
Six Epson i3200 Heads
2 x CMYK, 2 x ORGV and 2 x White. -
Adhesive Application and Quartz IR Dryer
Onboard bulk powder reservoir, base trays that capture excess powder for reuse, integrated exhaust filtration and continuous temperature monitoring. -
Bulk Ink System
With white ink recirculation. -
QUATRO HP RIP
PC workstation with QUATRO HP RIP software powered by CALDERA. -
Pairs with QUATRO Cutters and the ORBITER
Add the QUATRO CUTTER X or XY to cut transfers and the ORBITER to apply them.
Specifications
▼
Model
M&R QUATRO 68
Print Width
24" (60 cm)
Print Heads
6 x Epson i3200 (2 CMYK, 2 ORGV, 2 White)
Ink Colors
Cyan, Magenta, Yellow, Black, Orange, Red, Green, Violet, White
Print Modes
720 x 1800 DPI, 6-pass, 90 linear ft/hr; 720 x 2400 DPI, 8-pass, 60 linear ft/hr
Film
M&R QUATRO 24" PET transfer film, 23.8" x 328'
Printer Footprint
28" x 79" x 57" (72 x 200 x 146 cm)
Minimum Work Space
10' x 8'
