RACER | Multi-Head Embroidery Machines
Welcome to the Future of Embroidery
German-engineered speed • Extreme precision • Proven long service life
With the new RACER series, ZSK sets a new world standard for tubular embroidery. Developed and manufactured in Germany, RACER is built for the shortest return on investment—combining high embroidery speed with exceptional precision, flexible operating modes, and long-term durability.
All Operating Modes Ready
Tubular or cap operation, flat- or border-frame embroidery—every mode is available with quick, easy changeovers between applications.
New Standards in Tubular Work
The thinnest tubular in the industry enables jobs previously difficult to process (like shirt pockets or shoes) while protecting textiles from catching.
Why RACER
- Ultra-slim tubular arm supports tight-clearance jobs and specialty placements.
- Embroiders without a front “picker” to reduce snag risk and keep garments undamaged.
- Precision production with minimal clearances on the free arm.
- Flexible configurations: 1, 2, 4, 6, 8, and 12 heads (each head has 12 needles).
Model combinations are available with 400 mm (15.7") or 495 mm (19.5") head spacing, and 500 mm (19.7") or 700 mm (27.5") embroidery field depth (model dependent). RACER 8 and RACER 12 are available with 400 mm (15.7") head spacing and 500 mm (19.7") embroidery field depth.

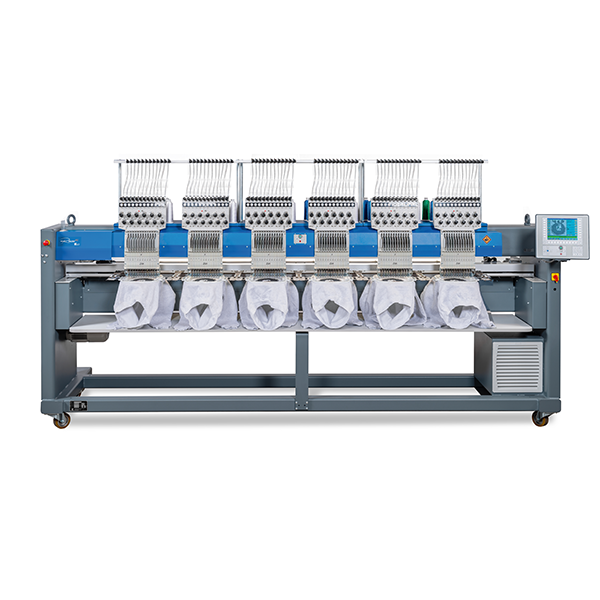

RACER 6S Specifications
Head Distance (W × D)
15.7" (400 mm)
Embroidery Field (W × D)
15.7" × 19.7" (400 × 500 mm)
Border Frame (W × D)
94.5" × 19.7" (2400 × 500 mm)
Tubular Frame (W × D)
15.9" × 11.8" (405 × 300 mm)
Cap Frame (W × D)
14.2" × 2.8" / 3.5" (360 × 70 / 90 mm)*
Embroidery Speed (Tubular / Flat / Cap)
1100 / 1100 / 1000 spm
Machine Size (W × D × H)
133.0" × 52.4" × 67.7" (3380 × 1330 × 1720 mm)
Weight
1873.9 lbs (850 kg)
*Cap frame dimensions shown as listed; confirm final configuration details based on selected options and accessories.
